Ugears "Tower Windmill Kit" I DIY Self-Assembly Mechanical Kits For Teens and Adults

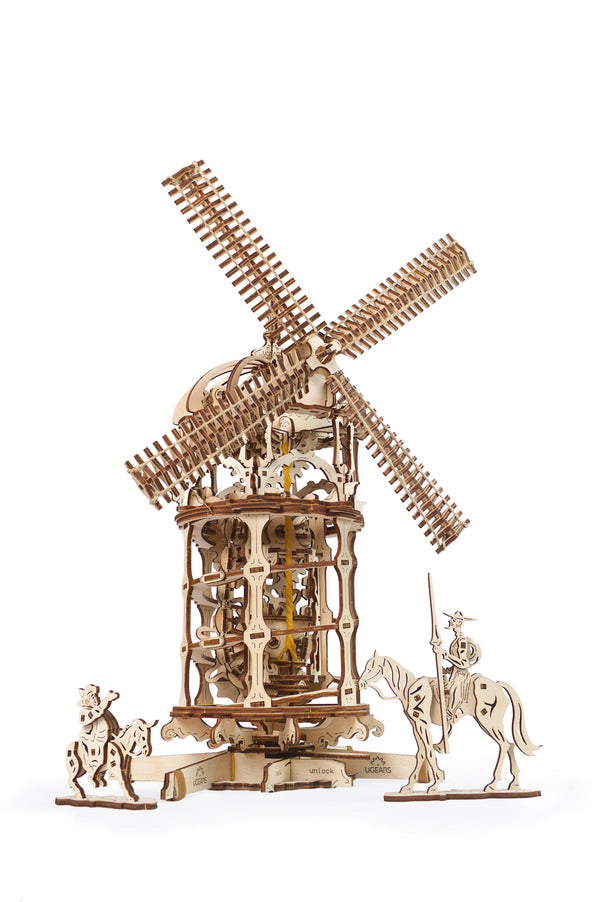

The Tower Windmill from Ugears is more than a mechanical model. It is an exciting adventure into the history of old England designed in “Victorian steampunk skeleton” style. The model is based on the Chesterton Windmill, a 17thcentury cylindrical stone tower windmill that was built outside the village of Chesterton, Warwickshire county.

When spinning rapidly the aerodynamic twist sails create fairly strong wind. It also can work the other way around: blowing air directed at the sails will make them spin. Use a fan to demonstrate to your kids how real windmills operate. A double planetary gear reducer with differently shaped gears provides the necessary speed.

The model is powered by a removable rubber band motor. Once the motor is removed, the Windmill can work in a manual mode that allows you to observe and examine the fascinating complex mechanism in detail.

The rubber band motor drives the sails by means of a screw conveyor (worm feeder) and gear transmission. The design of the gear transmission includes a flexure link, the type of chain drive assembled out of many small links. The full-fledged chain drive made out of plywood has never been used in the Ugears models before. Resembling a spiral staircase, the rotating base of the arched tower is a part of the screw conveyor mechanism that is a chief part of the model’s mechanism. While taking origin from the English prototype, the Ugears also addresses the Spanish classic: the Tower Windmill kit comes with the figures of the Ingenious Nobleman Don Quixote and his quirky companion Sancho Panza.

About Ugears models

The Ugears Tower Windmill model kit is made of sustainably sourced high grade wood and has everything you might need for assembly. The quality of the parts is top-notch: a laser method is used for cutting items from a plywood board that provides precise hairline cuts. The details have to be pulled out of the boards and assembled to create a complete model.

Like all other Ugears models, the Tower Windmill comes with step-by-step, full-color, truly easy to follow instructions in 11 languages (English, German, Ukrainian, French, Polish, Spanish, Russian, Turkish, Italian, Chinese and Korean) and requires neither glue nor special tools to be fully assembled into functional working Windmill.

Model size: 13.8*18.9*8.7 in (35*48.5*22 cm)

Package size: 14.6*6.7*2 in (37.8*17*5 cm)

Number of components: 538

Estimated time of assembly: 12-15 hours

Level: Advanced

Age Group: 14+

NATURAL

Made from wood materials

MECHANICAL

The models produce motion

NO GLUE CONNECTION

Assembling without glue and chemicals

SELF ASSEMBLY

Details are already cut and ready to assemble

Educational

Perfect for family projects through hands-on STEM learning
